Light Microscope Structure and Magnification

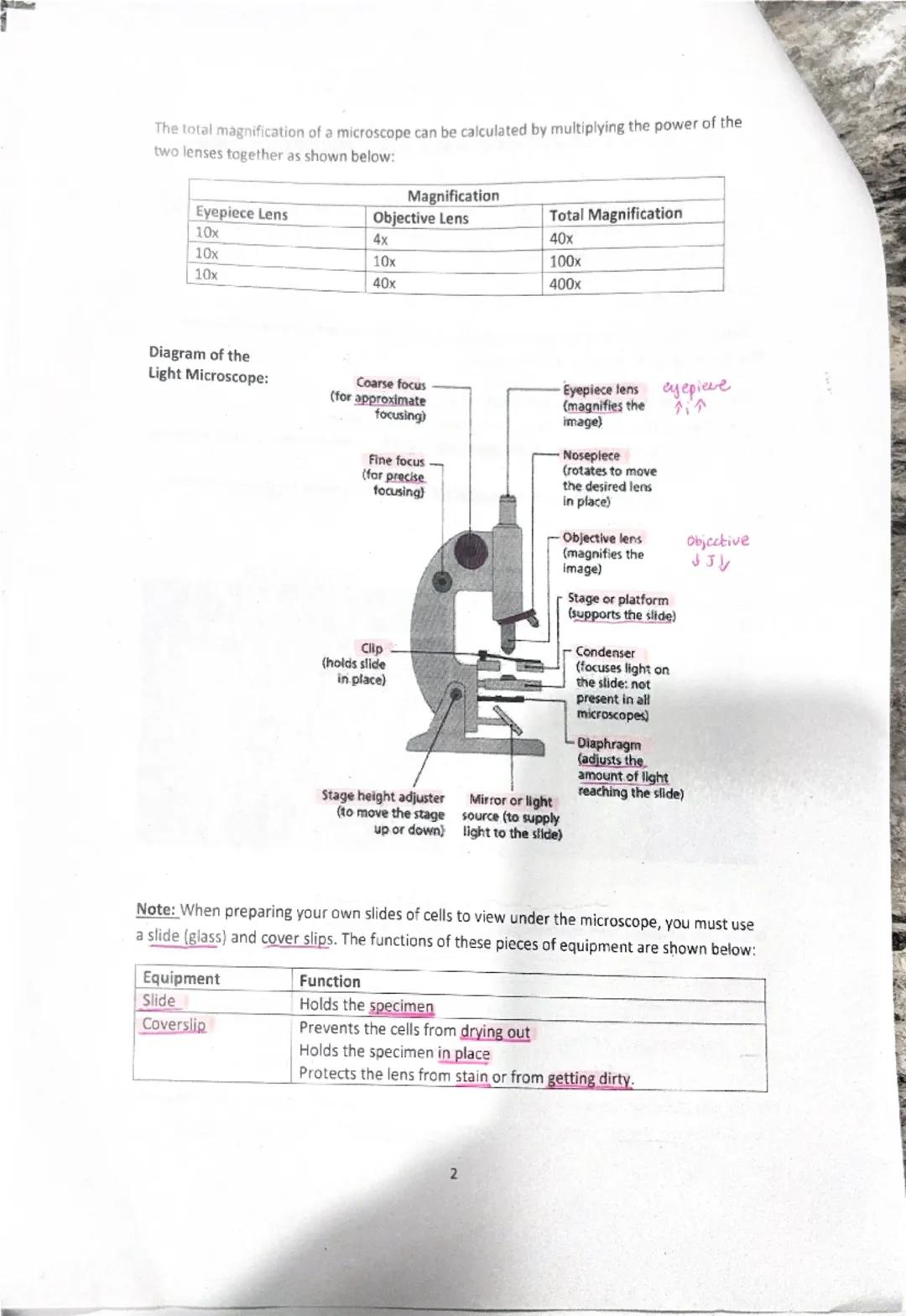

Getting the hang of microscopes is easier than you think! Total magnification is simply calculated by multiplying the eyepiece lens power by the objective lens power. For example, a 10x eyepiece with a 40x objective gives you 400x magnification total.

The light microscope has several key parts you need to know. The eyepiece lens and objective lens do the magnifying work, while the stage holds your specimen in place with clips. The coarse focus gets you roughly in focus, then the fine focus sharpens the image perfectly.

Light is crucial for seeing anything! The mirror or light source provides illumination, the condenser focuses that light onto your slide, and the diaphragm controls how much light reaches your specimen. Too much light washes everything out, whilst too little makes it impossible to see details.

Top Tip: Always start with the lowest magnification objective lens first, then work your way up to higher magnifications once you've found your specimen.

When preparing your own slides, you'll need a glass slide to hold your specimen and a coverslip on top. The coverslip isn't just decoration - it prevents cells from drying out, keeps everything in place, and protects the expensive objective lens from getting dirty or stained.
