Linear functions are everywhere around you - from calculating your... Show more
Mathematics4 views·Updated May 26, 2026·7 pagesExploring Linear Functions: Graphing and Relationships
1 / 7
1
of 7

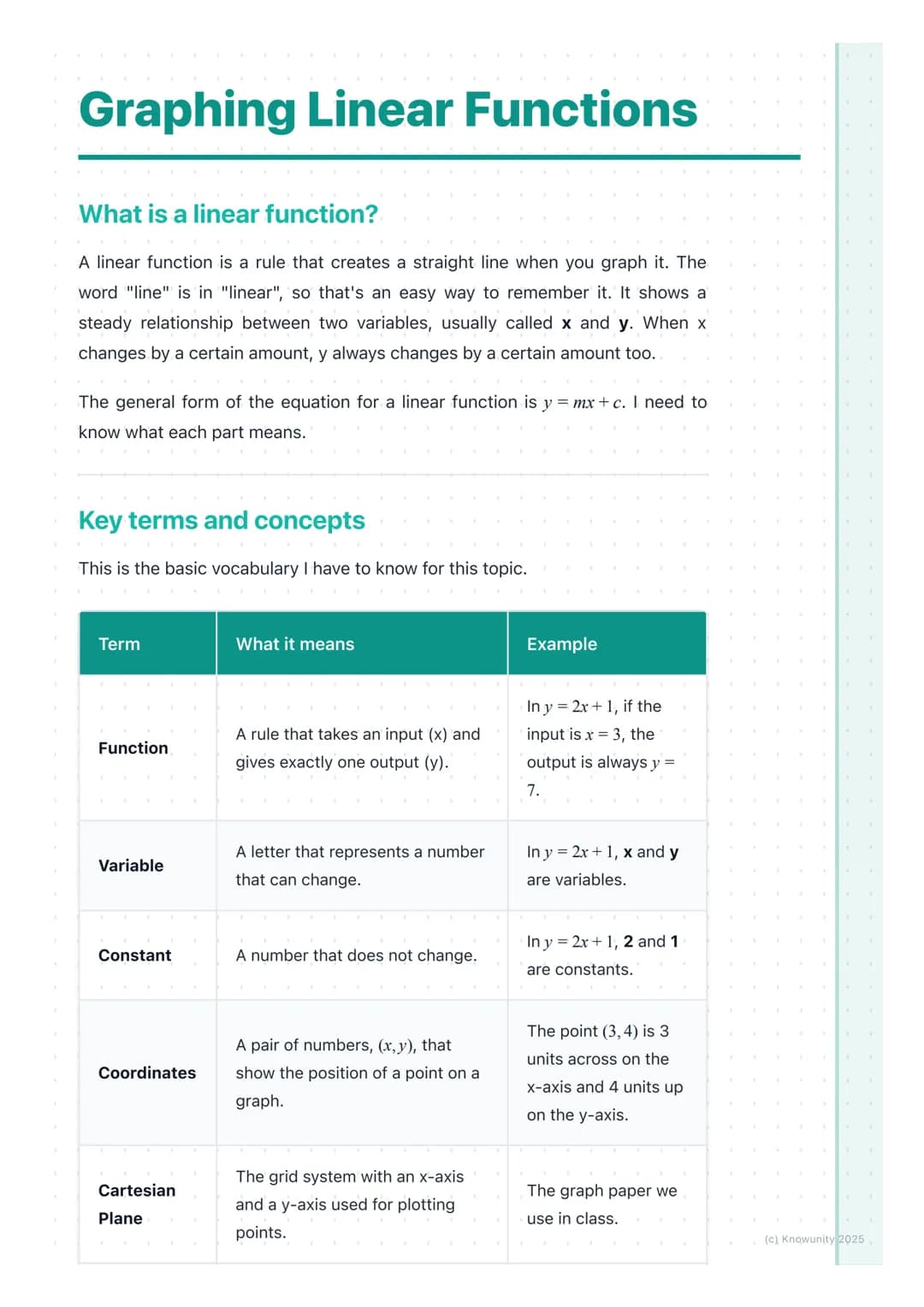

Understanding Linear Functions
Think of a linear function as a mathematical rule that always creates a straight line when you plot it on a graph. The clue's in the name - "linear" comes from "line"! These functions show how two things are connected in a steady, predictable way.
The magic formula you need to master is y = mx + c. This might look intimidating at first, but it's actually your best friend for understanding how lines work. Every linear function can be written this way.
You'll also need to get comfortable with some key vocabulary. A function is simply a rule that takes one number (x) and gives you exactly one answer (y). Variables are the letters (like x and y) that can change, while constants are the numbers that stay the same. Coordinates are pairs of numbers like (3, 4) that tell you exactly where to put a point on your graph.
Quick Tip: Remember coordinates as "across the hall, then up the stairs" - go across the x-axis first, then up or down the y-axis!
2
of 7

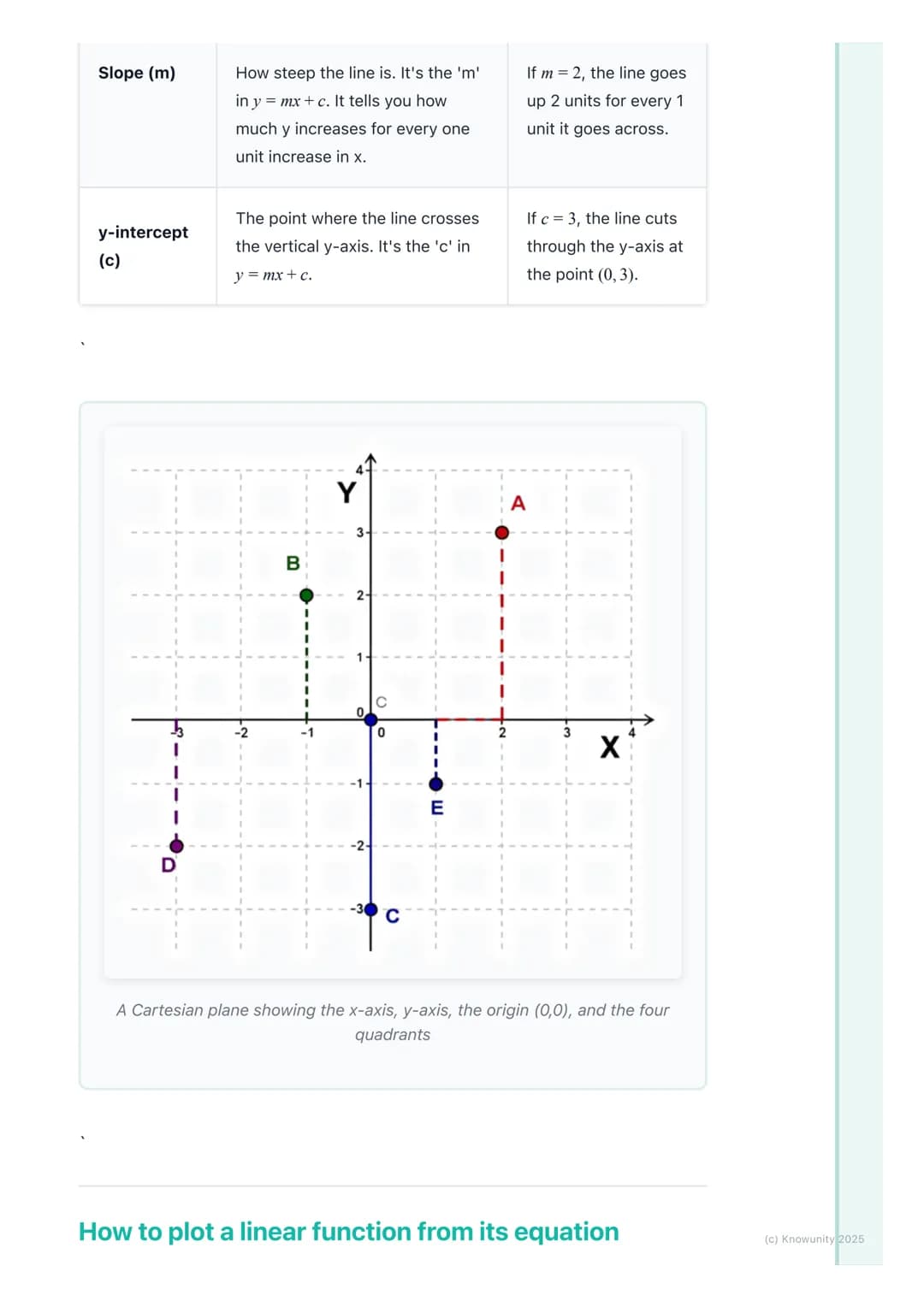

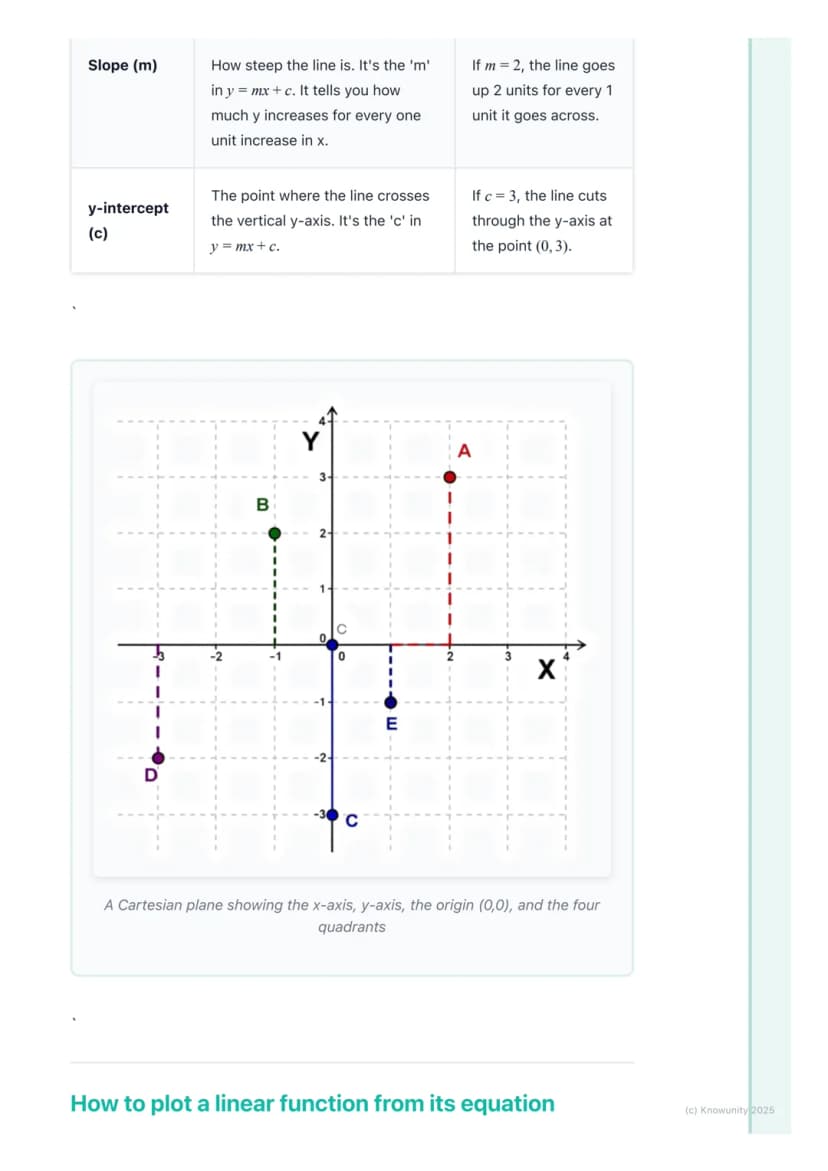

The Two Most Important Parts
Every linear equation has two crucial components that control how your line looks. The slope (m) tells you how steep your line is - it's like the angle of a ramp. If m = 2, your line goes up 2 units for every 1 unit it goes across. Pretty straightforward!
The y-intercept (c) is where your line crosses the vertical y-axis. If c = 3, you know your line will pass through the point (0, 3) every single time. This gives you an instant starting point for drawing your graph.
Understanding these two parts means you can look at any equation like y = 2x + 1 and immediately know: "This line has a slope of 2 and crosses the y-axis at 1." You're already halfway to drawing the perfect graph!
Remember: Positive slopes go uphill from left to right, negative slopes go downhill. It's that simple!
3
of 7

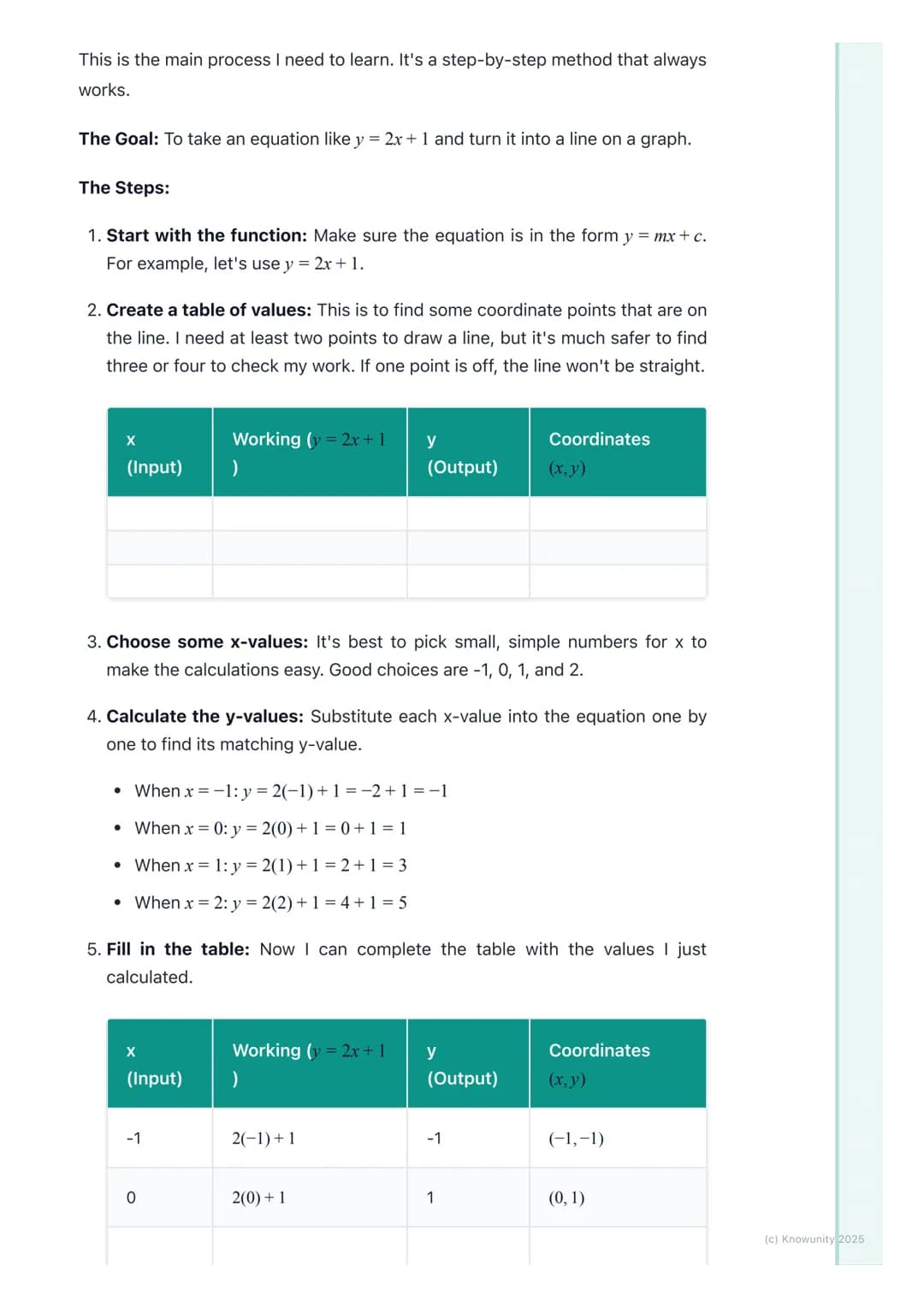

Creating Your Table of Values
Here's where the real work begins, but don't worry - it's just following a recipe. Start with your linear function in the form y = mx + c. Let's use y = 2x + 1 as our example.
Your mission is to find at least three points that lie on this line. Pick simple x-values like -1, 0, 1, and 2 to make your calculations easy. Nobody wants to work with horrible fractions when they don't have to!
Now substitute each x-value into your equation. When x = 0: y = 2(0) + 1 = 1. When x = 1: y = 2(1) + 1 = 3. When x = 2: y = 2(2) + 1 = 5. See the pattern? Your y-values are increasing by 2 each time because your slope is 2.
Pro Tip: If your three points don't line up perfectly when you plot them, check your maths - one of your calculations has gone wrong!
4
of 7

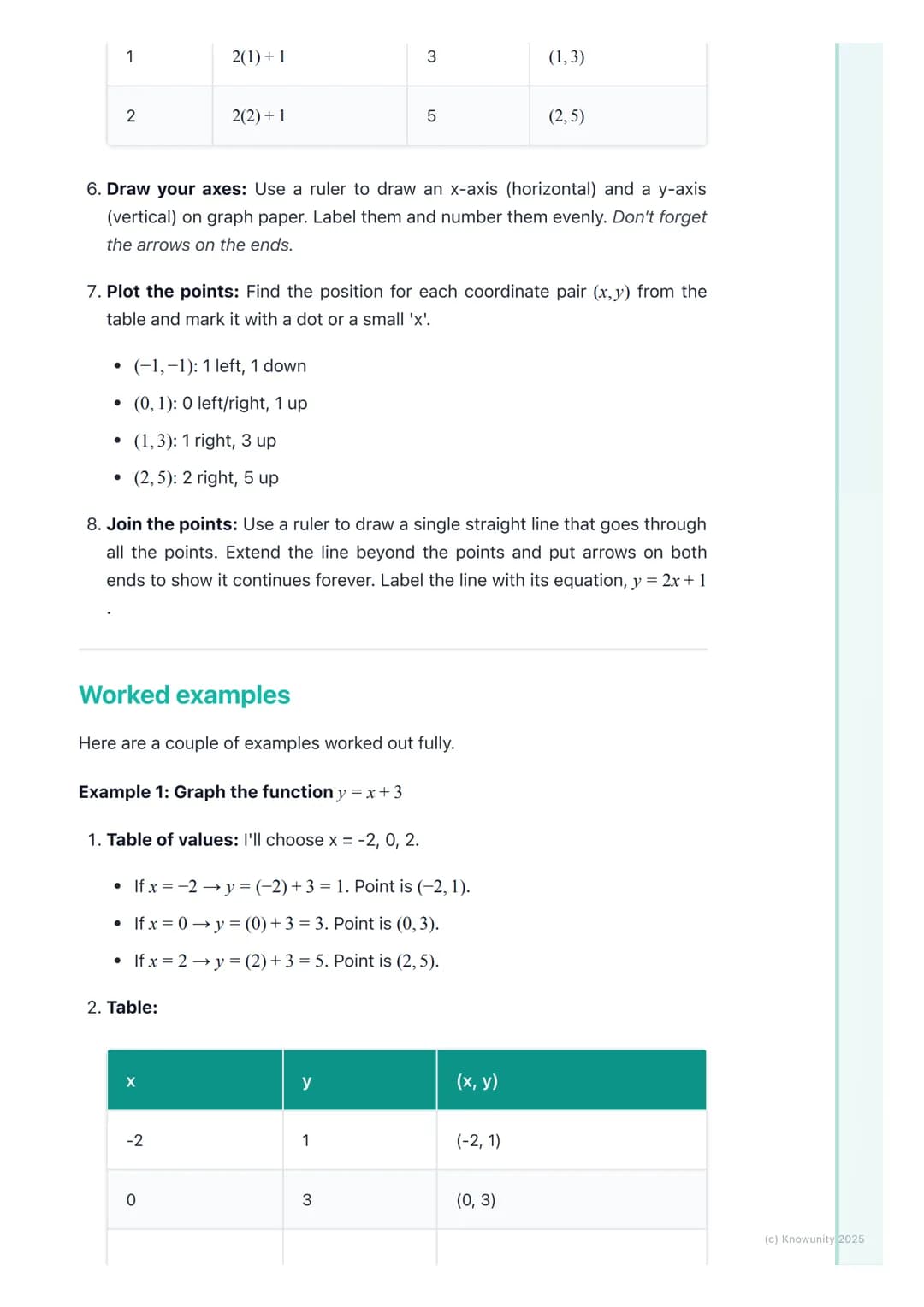

Plotting and Drawing Your Graph
Time to bring your calculations to life! Draw your axes with a ruler , label them clearly, and don't forget those arrows on the ends. Your Cartesian plane should look professional.
Plot each coordinate pair from your table carefully. For (-1, -1), go 1 unit left and 1 unit down from the origin. For (0, 1), stay on the y-axis and go 1 unit up. For (1, 3), go 1 unit right and 3 units up.
Once all your points are marked, use your ruler to draw one straight line through them all. Extend the line beyond your points with arrows to show it continues forever. Label your line with its equation - teachers love to see this attention to detail.
Golden Rule: Three points minimum! Two points make a line, but the third point proves you haven't made any mistakes.
5
of 7

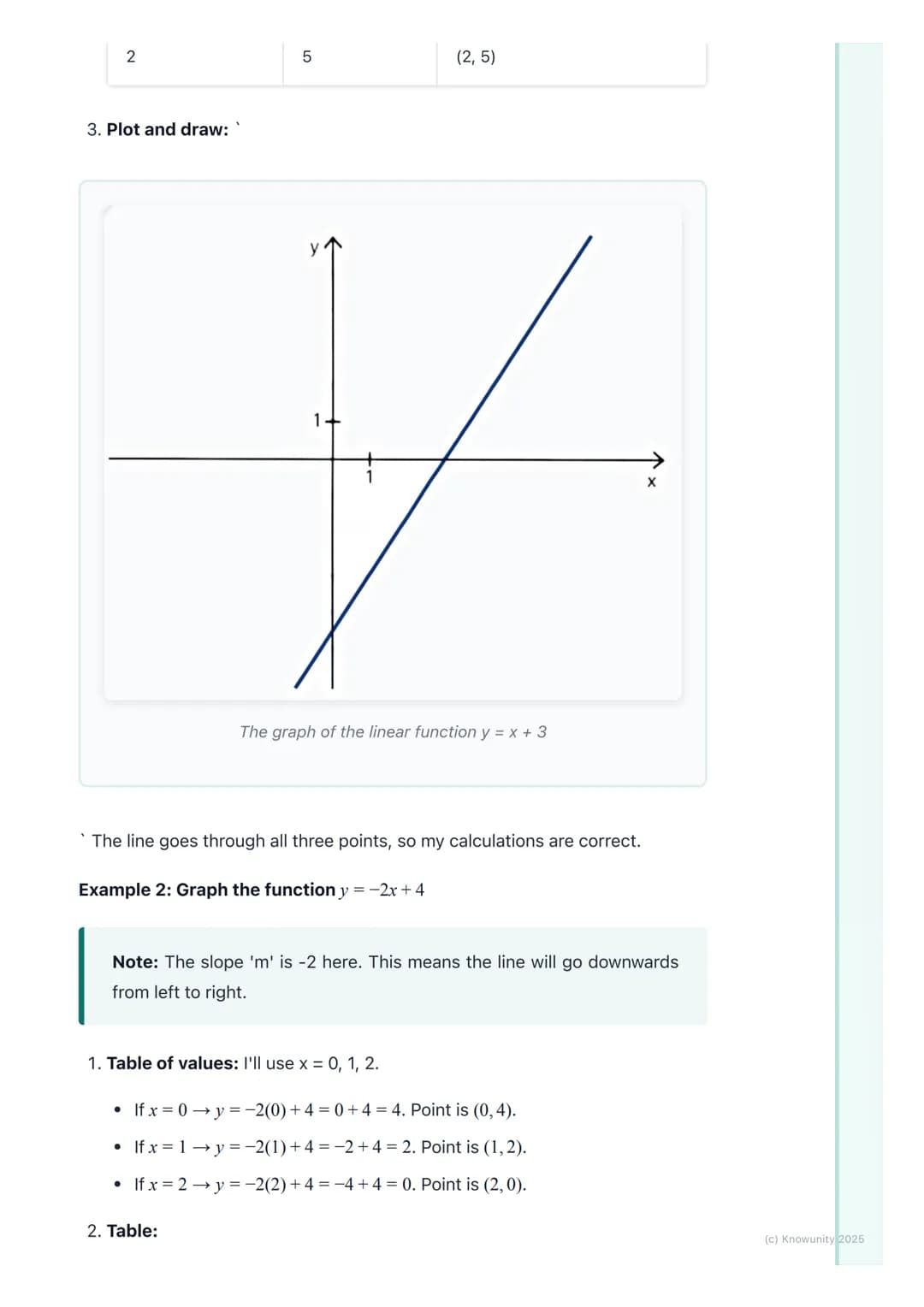

Worked Example: Positive Slope
Let's tackle y = x + 3 step by step. This linear function has a slope of 1 (remember, x means 1x) and a y-intercept of 3. So you know it goes up gently and crosses the y-axis at 3.
Choose x = -2, 0, and 2 for easy calculations. When x = -2: y = (-2) + 3 = 1. When x = 0: y = (0) + 3 = 3. When x = 2: y = (2) + 3 = 5. Your coordinates are (-2, 1), (0, 3), and (2, 5).
Plot these points and connect them with a straight line. Notice how the line goes up from left to right? That's because your slope is positive. The line crosses the y-axis exactly where you predicted - at y = 3.
Check Yourself: Does your line pass through (0, 3)? If not, something's gone wrong with your plotting!
6
of 7

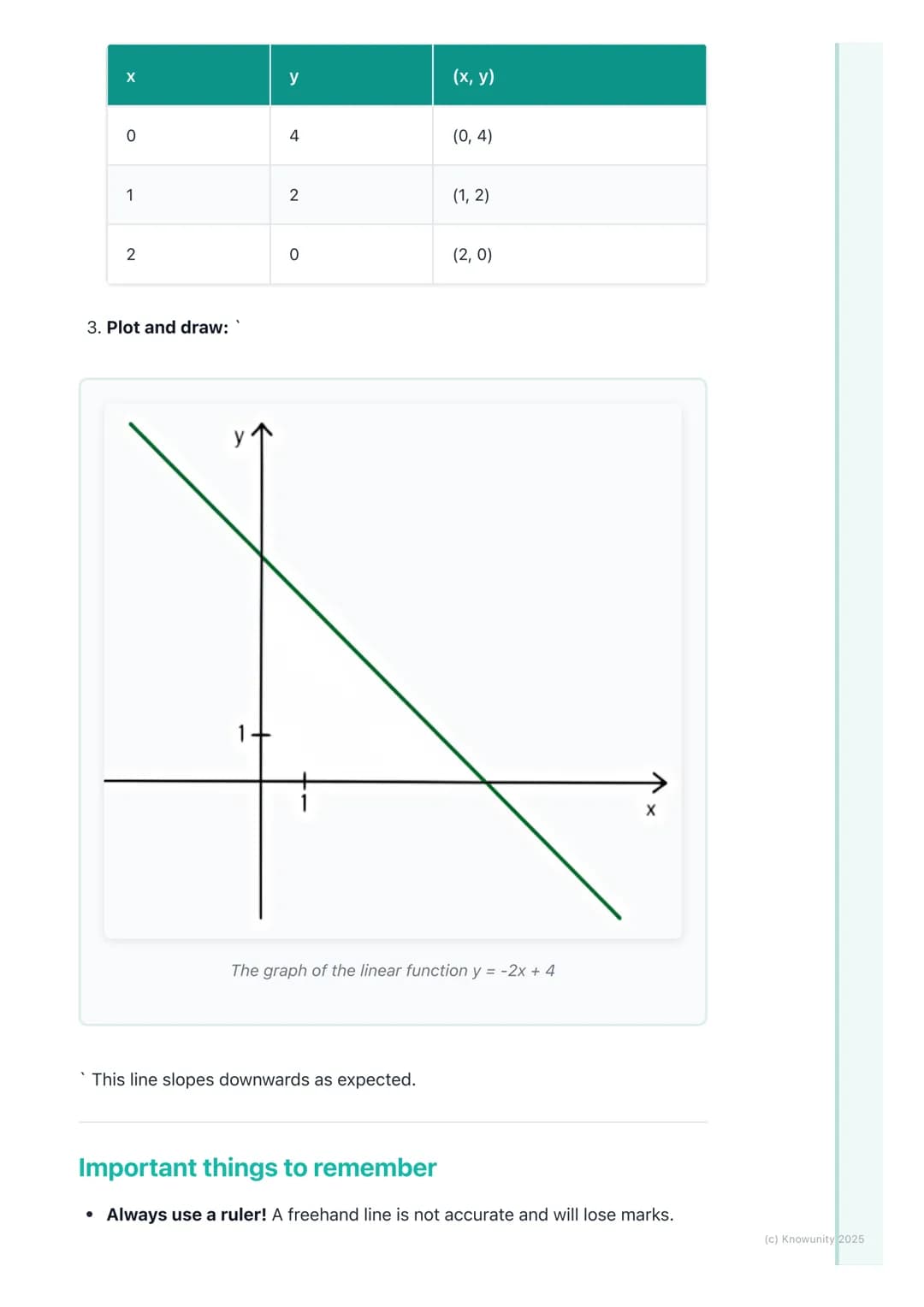

Worked Example: Negative Slope
Now let's try y = -2x + 4, which has a negative slope of -2. This means your line will slope downwards from left to right - quite dramatically because -2 is fairly steep. The y-intercept is 4.
Using x = 0, 1, and 2: When x = 0: y = -2(0) + 4 = 4. When x = 1: y = -2(1) + 4 = 2. When x = 2: y = -2(2) + 4 = 0. Your coordinates are (0, 4), (1, 2), and (2, 0).
Plot these points and draw your line. See how it slopes downward? For every step right, the line drops 2 steps down. This linear function creates a perfect straight line that behaves exactly as the equation predicts.
Pattern Spot: Notice how y decreases by 2 each time x increases by 1? That's your slope of -2 in action!
7
of 7

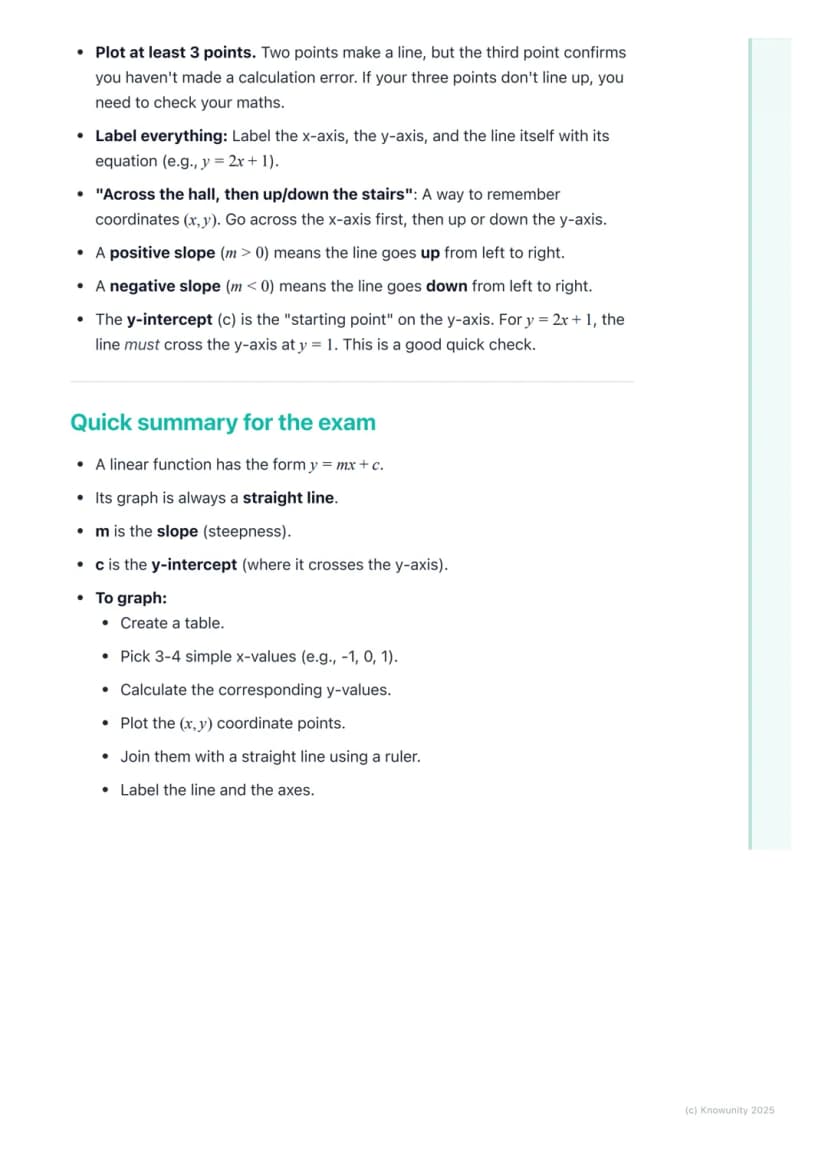

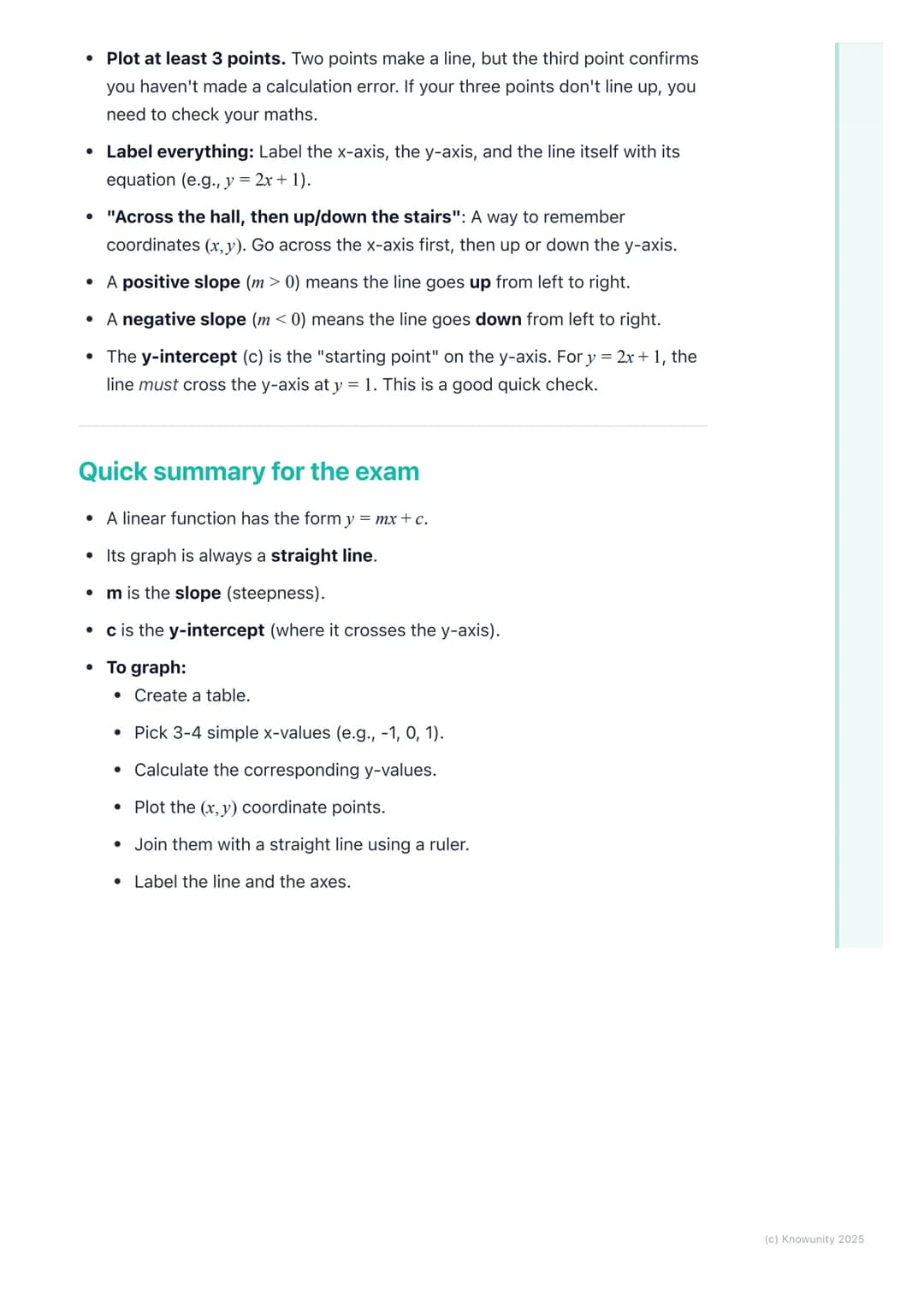

Exam Success Tips
Master these essentials and you'll smash any linear functions question. Always remember: y = mx + c where m is slope and c is y-intercept. Positive slopes go uphill, negative slopes go downhill. Simple!
Your foolproof method: create a table, pick 3-4 simple x-values, calculate y-values, plot coordinates, and join with a ruler. Label everything clearly - your axes, your line, and its equation. Teachers notice these details.
The y-intercept gives you a brilliant quick check. For y = 2x + 1, your line must cross the y-axis at 1. If it doesn't, you've made an error somewhere. Use this as your safety net in exams.
Exam Hack: If you're running short on time, just find the y-intercept and one other point. Two points are enough to draw the line, though three is always safer!
